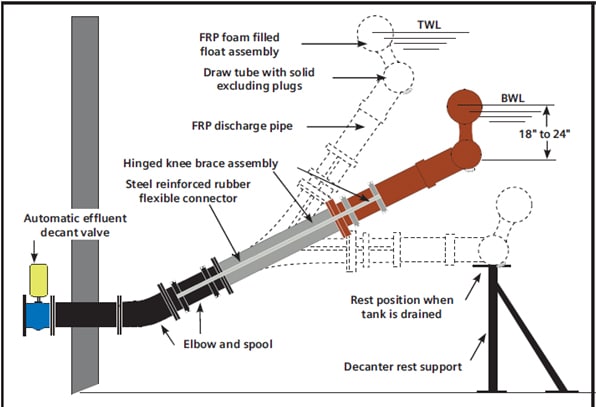

The floating decanter utilizes a circular weir for decanting the supernatant liquid and a flotation device for buoyantly supporting the weir within the basin. The floatation device also acts as a baffle to prevent scum from being withdrawn during the decanting step. For the successful operation of an SBR, the decanter must be designed to prohibit Mixed Liquor Suspended Solids (MLSS) from entering the decanter during non-decant sequences as well.
Early decanters were simple pipes with drilled holes along the bottom and sides. Unfortunately during the Fill & Settle phase solids plugged the holes & pipes resulting in a discharge of these trapped solids in Decant stage. The development of new solids decanters corrected the problem. The solutions were:
- Fixed decanters which were Air filled except during the Decant phase.
- Mechanically closed Decanters by either Electric Motor or Hydraulics
- Decanter design with spring-loaded solids excluding valve that is opened by hydraulic differential during decant phase.
- Decanters which are removed from the reactor & reintroduced during the Decant phase.
Though many types of decanters are used most commonly used is Floating Decanter or adjustable weirs. The decanter withdraws around 15 -20” below the water surface & rate of decantation is controlled by Automatic valves or by pumping.
Typically 25% of the volume of SBR is decanted during the decanting phase. This leaves nearly all of the Activated sludge within the reactor. Around 40 – 50 minutes of Decant phase is required normally. The decant phase should not interfere with settled solids and also should not cause vortex resulting in floating of solids.
In order for the reduced or limited withdrawal of solids from the SBR during the Decant phase, the following operations as well as design guidelines need to be followed.
The decanter should draw the treated supernatant from below the water surface & exclude foam & scum. An adequate zone of separation between the sludge blanket & decanter should be maintained at all times during the decanting phase. A means for excluding solids from entering decanter during React as well as Settle phase should be provided.
